Nanjing JPG Bearing & Equipment Co., LTD

Focus on the production and supply of all kinds of high-quality bearings

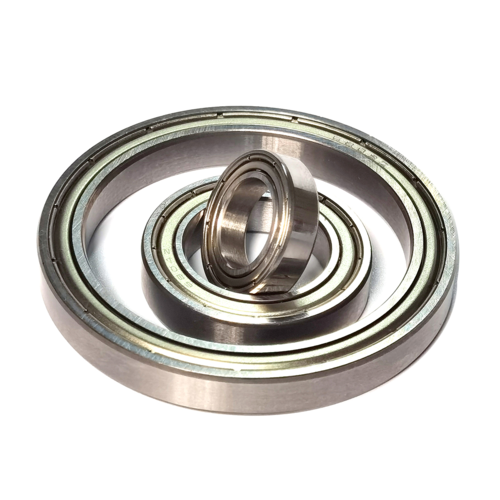

Thin Wall Precision Deep Groove Ball Bearing
——————————————————————
Thrust ball bearings——————————————————————

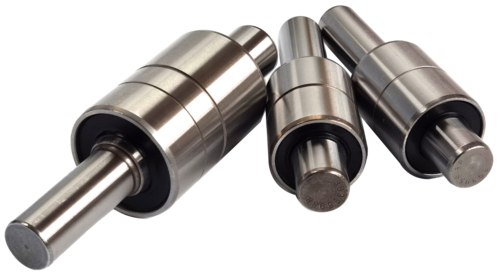

Shaft Water Pump Bearings
——————————————————————
Excellent Manufacturer of Thin walled bearings
*Leading CNC production equipment ensures the consistency and stability of product accuracy. *Advanced production equipment and high-quality technical staff ensure the quality of bearing products.
*Advanced automation equipment ensure the quality of products while taking into account the production efficiency .

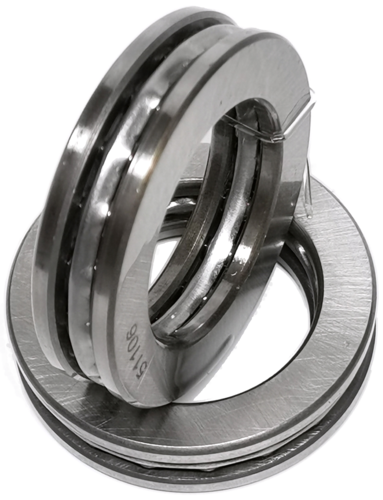

Thrust ball bearings are separable, including shaft washers, bearing seat washers, a set of steel balls and cage, which makes it very convenient to install the journal and bearing seat separately. thrust ball bearings have different structures, which can be divided into single direction thrust ball bearings, double directions thrust ball bearings and angular contact thrust ball bearings.

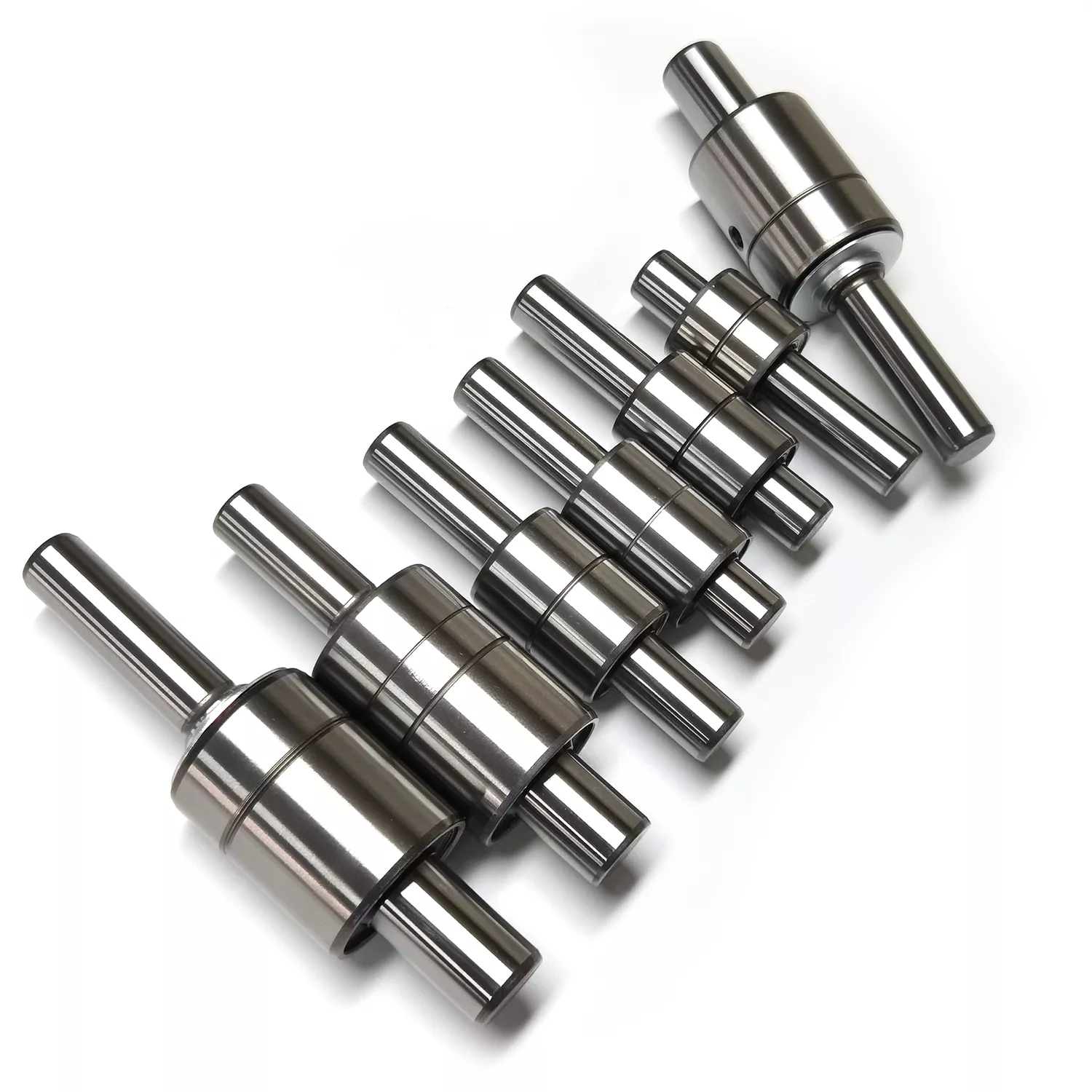

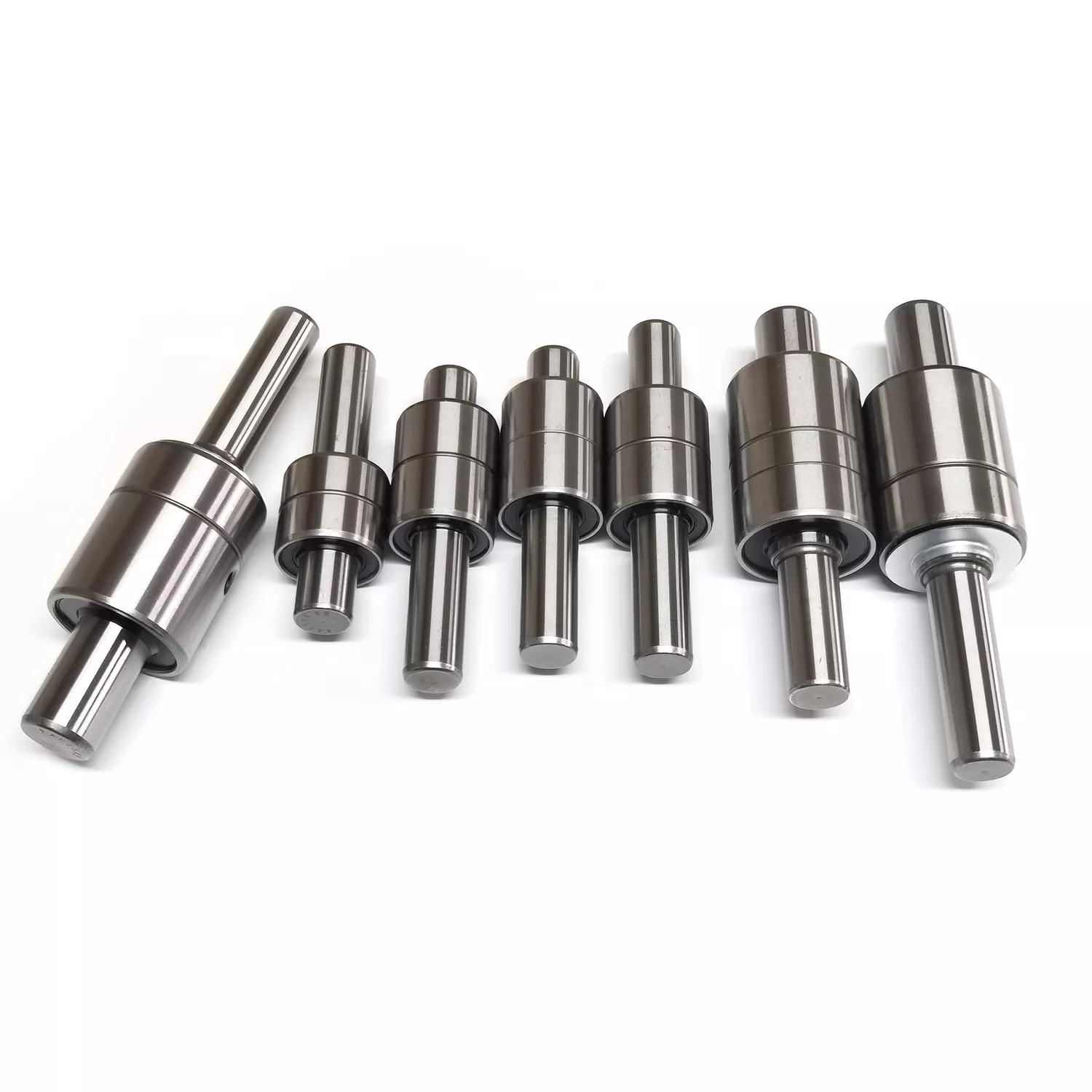

Our automobile shaft water pump bearings have a complete range of product numbers, and the product quality has been recognized by supporting manufacturers around the world.
Tapered roller bearings
——————————————————————
Cylindrical Roller Berings
——————————————————————
Spherical roller/ball bearings
——————————————————————

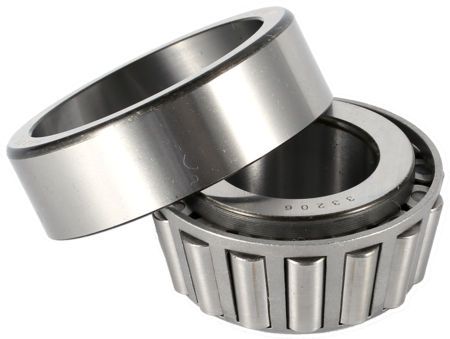

Tapered roller bearings are radial thrust rolling bearings whose rolling elements are tapered rollers. There are two kinds of small cone angle and large cone angle. The small cone angle mainly bears the combined radial and axial loads mainly based on radial load, and is often used in pairs. The inner and outer races can be installed separately, and the radial and axial clearance can be adjusted during installation and use; the large cone angle is mainly used for Bearing axial and radial combined loads mainly based on axial load, generally not used to bear pure axial load alone, can be used to bear pure radial load when configured in pairs.
In bearings of this type, the cylindrical rollers are in linear contact with the raceways. They have a high radial load capacity and are suitable for high speeds. Cylindrical roller bearings, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools. Some cylindrical roller bearings have no ribs on either the inner or outer ring, so the rings can move axially relative to each other. These can be used as free-end bearings. There are different types designated as NU, NJ, NUP, N, NF (for single-row cylindrical roller bearings), NNU, and NN (for double-row cylindrical roller bearings depending on the design or absence of side ribs). The outer and inner rings of all types are separable .
Spherical roller/ball bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers/balls with cages. The inner rings with cylindrical or tapered bores.
Types EA, C, CD, CA, these are designed for high load capacity, are available. Types EA, C, and CD have pressed steel cages; and type CA has machined brass cages. Type EA has especially high load capacity, features low torque, and has a high-strength cage.
Pillow Block Bearings
——————————————————————
Auto bearings——————————————————————

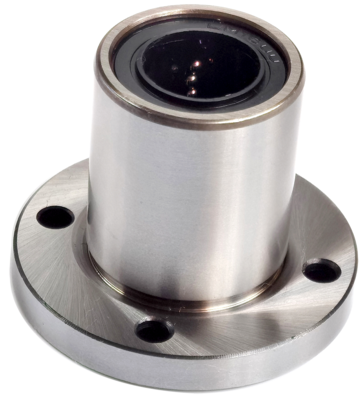

Linear bearing
——————————————————————

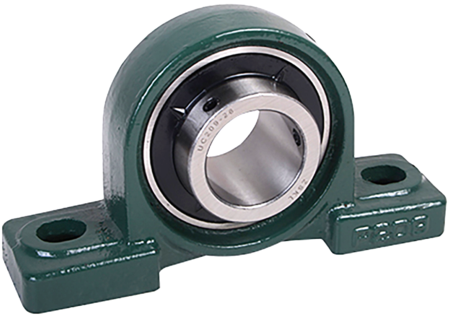

Pillow blocks, the most commonly used type of mounted units, are designed to provide shaft support where the mounting surface is parallel to the shaft axis. The bolt holes are usually slotted for adjustment during mounting.Pillow blocks are supplied in a variety of configurations. Pressed steel pillow block bearings are also available for light-duty applications.

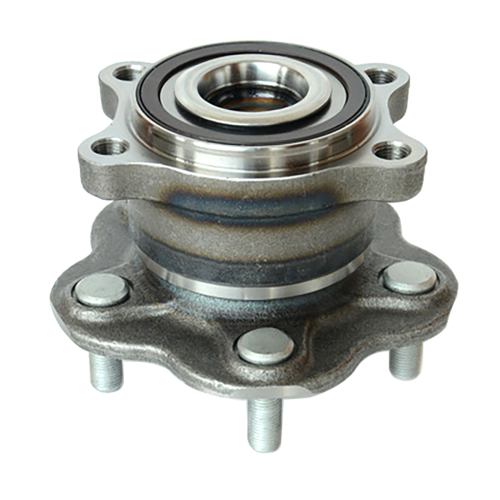

Wheel hub bearing's main function is to provide accurate guide for the rotation of the wheel hub, it carry axial load,and bear radial load, is a very important component.Wheel hub bearing unit is in the standard angular contact ball bearingsand tapered roller bearings, on the basis of it will be two sets of bearing as a whole, the advantages are the assembly
performance is good, can omit clearance adjustment, light weight, tight structure, and load capacity is big, can first fill grease
when sealed bearing, omit the external wheel hub seal and no maintenance etc, and has been widely used in cars,
in a truck also has a tendency to gradually expand the application.

Linear bearing specifications
"LM"   metric standard type linear bearing  "LME" means inch standard type linear bearing
"UU"   rubber seals on the both sides of the long type linear bearing
"OP" means open type linear bearing
"AJ" means adjustment type linear bearing
*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision mini bearing

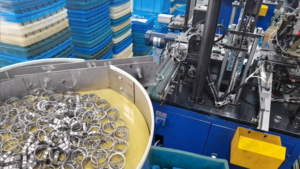

Production automation
Bearing the popular science
About NANJING JPG BEARING
Certificate
Nanjing JPG Bearing & Equipment Co.,ltd.
Nanjing JPG Bearing & Equipment Co.,ltd./ABX Bearing Limited was founded in 2000 which is an whole seller and producing of Deep groove ball bearing , taper roller bearing , and pillow block bearing and many world famous brand bearing.

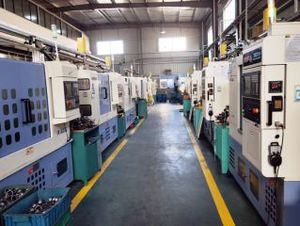

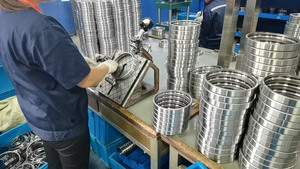

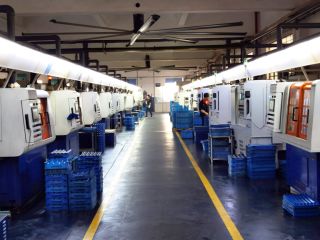

Production workshop
Product Groups
Ball Bearings
Thrust bearings,Axial Bearings
water pump bearing
Angular Contact Ball Bearing
Spherical Roller Bearings/Spherical Ball Bearings
Cylindrical Roller Bearings
Tapered Roller Bearings
Pillow Block Bearings
Plain Bearing,Linear bearing,Ball screw,Ball Joint rod end
Track Roller Bearings
Auto bearings
Transmission Parts
>
Pre-tightening force to ensure the life of transmission. If the pre-tightening force is too large, power consumption may even lead to overheating. If the preload...
>
The mechanical spindle refers to the axis that drives the workpiece or tool to rotate on the machine tool. The main shaft components are usually composed of main shaft, bearings and transmission part…
>
Wind power bearings are considered by the industry to be one of the two parts that are difficult to localize, and the other is the wind power control system. In recent years, my country’s wind power b
>
1. The Swedish (skf) SKF Group is the world's leading supplier of rolling bearings, bearing housings, bearing units, seals, lubrication systems, condition monitoring, drive and motion control products
>
Spindle bearing oil is a precision machine tool spindle bearing special lubricating oil and similar
>
The theoretical axis of the rolling bearing rotates, that is, the center line of the inner ring for
NEWS

NEWS

副标题

>
Our main product :1   MainProductsSpherical Roller BearingDeep groove ball bearingTapered Roller BearingStainless steel bearingpillow block bearingslinear bearings...2   ID size  3MM-1000MM3Certifi...
>
Pre-tightening force to ensure the life of transmission. If the pre-tightening force is too large, power consumption may even lead to overheating. If the preload...
>
The mechanical spindle refers to the axis that drives the workpiece or tool to rotate on the machine tool. The main shaft components are usually composed of main shaft, bearings and transmission part…
>
Wind power bearings are considered by the industry to be one of the two parts that are difficult to localize, and the other is the wind power control system. In recent years, my country’s wind power b
>
When it comes to the flower of industry, people all over the world will tell you that the common answer is "aircraft", an advanced vehicle that allows you to overlook the entire city at a height of 10
>
1. The Swedish (skf) SKF Group is the world's leading supplier of rolling bearings, bearing housings, bearing units, seals, lubrication systems, condition monitoring, drive and motion control products
>
From January to June 2018, the output of bearing steel in my country's major premium special steel enterprises was 1,966,600 tons, an increase of 17.13% compared with the same period last year.
>
Trouble phenomenon: When one of the four wheel bearings of the vehicle is damaged, you will hear a continuous buzzing-buzzing-buzzing sound in the car while the car is driving. A slight buzzing sound…
>
The Generalized Bearing Life Model (GBLM) developed by SKF will ensure that company users and distributors always select the correct bearing for the correct application. So far, works
>
Rolling bearing is a kind of commonly used machinery and hardware products, the need to constantly i
>
Bearing is an important part of modern machinery equipment. Its main function is to support the mech
>
Spindle bearing oil is a precision machine tool spindle bearing special lubricating oil and similar
>
The theoretical axis of the rolling bearing rotates, that is, the center line of the inner ring for
>
In 2017, the global cumulative sales of new energy passenger vehicles exceeded 1.22 million, a year-on-year increase of 58%. Among them, my country's new energy passenger vehicle sales exceeded 578,00
>
The surface of steel (Steel) under the action of instantaneous high temperature (hyperthermia) interacts with oxygen in the air (AIR), and it rises to a very thin (20-30nm) thin layer of iron oxide …
More excellent products
Product Q&A

----------------------------------------------------------------------------------



Why does tapered roller bearing fail‍

矢量智能对象_13.pngThe surface of steel (Steel) under the action of instantaneous high temperature (hyperthermia) interacts with oxygen in air (AIR),‍


----------------------------------------------------------------------------------


矢量智能对象.png The lubrication method after the machine tool bearing is installed is very important‍

矢量智能对象_13.png The correct configuration of spherical roller bearings refers to the combination of bearing types and the arrangement of the front and rear bearings.‍


----------------------------------------------------------------------------------



Bearing installation heating method‍

矢量智能对象_13.png Trouble phenomenon: When one of the four wheel bearings of the vehicle is damaged, you will hear it when the vehicle is driving.‍


----------------------------------------------------------------------------------



Some concepts of bearings


Bearing axis

The theoretical axis of the rolling bearing rotates, that is, the center line of the inner ring for the centripetal bearing and the center line of the axial ring for the thrust bearing.

Excellent Manufacturer of bearings
Nanjing JPG Bearing & Equipment co., ltd.
Leading CNC production equipment ensures the consistency and stability of product accuracy. *Advanced production equipment and high-quality technical staff ensure the quality of bearing products.
Ensure The Quality
Advanced automation equipment ensure the quality of products while taking into account the production efficiency .
Automated manufacturing
